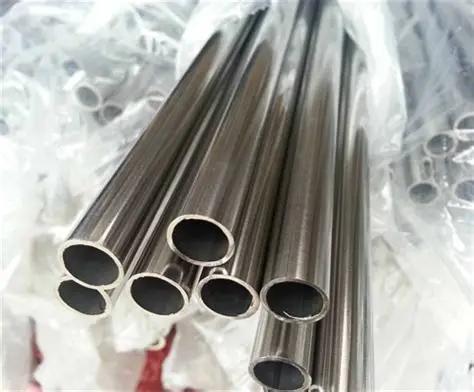

New Zealand Construction Firm Sources 50 Tons of 316 Stainless Steel Seamless Pipes for Landmark Project

In early 2025, a well-established mid-sized construction contractor based in Auckland, New Zealand, approached us with an urgent requirement for 316-grade stainless steel seamless pipes. The pipes were destined for a landmark waterfront infrastructure project — a mixed-use commercial and public amenity development requiring materials capable of withstanding the harsh marine environment of the Waitemata Harbour.

The client's specification called for pipes with superior chloride corrosion resistance, given the project's direct exposure to salt-laden coastal winds and tidal spray. After an initial technical consultation, our engineering team recommended ASTM A312 TP316 seamless pipes with additional restrictions on carbon content (max 0.03%) to ensure optimal welding performance during on-site fabrication.

The 50-metric-ton order encompassed a comprehensive range of seamless pipe dimensions tailored to different application zones within the project:

• OD 33.4mm × WT 3.38mm (1" Sch40): 8 tons — Instrumentation and compressed air lines running through exposed external galleries.
• OD 60.3mm × WT 3.91mm (2" Sch40): 12 tons — Secondary structural supports and handrail posts requiring polished finish for aesthetic consistency.
• OD 88.9mm × WT 5.49mm (3" Sch40): 18 tons — Primary seawater cooling circuits and fire suppression main lines.
• OD 168.3mm × WT 7.11mm (6" Sch40): 12 tons — Main drainage risers and stormwater management conduits embedded in concrete foundations.


Material Standard: ASTM A312 TP316 — Solution annealed at 1,040°C minimum followed by water quenching to ensure full carbide dissolution and optimal intergranular corrosion resistance. Supplementary Requirement S2 (transverse tension test) and S6 (intergranular corrosion test per ASTM A262 Practice E) were applied to the entire lot.

Upon receiving the initial RFQ with partial specifications, our technical team identified three potential optimization points. We recommended upgrading from the initially requested TP304 to TP316 based on the project's coastal proximity, suggested adding 3.2mm of corrosion allowance for buried sections, and proposed grouping pipe dimensions to optimize container loading efficiency. The revised proposal was delivered within 48 hours, including a detailed technical deviation note explaining each recommendation.

The client's consulting engineer requested pre-production samples for each OD/WT combination. Our quality team prepared six sample coupons (300mm length each), accompanied by raw material cast analysis certificates from the originating mill. The client conducted independent spectrometric verification at an Auckland-based IANZ-accredited laboratory — all six samples passed with chemistry results within ±2% of the certified values.

Production was scheduled across two parallel seamless pipe mill lines to meet the project's 8-week deadline. Key quality milestones included:

• 100% hydrostatic testing at 1.5× design pressure per ASTM A999
• Eddy current inspection for every pipe per ASTM E426 (notch depth: 5% of wall thickness)
• Random lot sampling for flattening test and flare test per ASTM A370
• Full PMI (Positive Material Identification) using handheld XRF on every bundle before packing

The complete 50-ton consignment was loaded into four 20-foot containers. Given the long sea transit from China to New Zealand (approximately 18 days via transshipment through Southeast Asia), we applied enhanced corrosion protection: each pipe was individually wrapped in VCI paper, bundles were secured on ISPM 15 fumigated wooden pallets with steel banding, and containers were lined with desiccant packs to control humidity during the voyage. The shipment arrived at the Port of Auckland three days ahead of the client's scheduled receiving window — with zero transit damage across all four containers.

1. Proactive Technical Advisory: Our material upgrade recommendation (TP304 → TP316) was driven by genuine engineering assessment rather than commercial upselling — a approach the client specifically acknowledged as trust-building.
2. Transparent Quality Documentation: Every test certificate, inspection report, and traceability record was uploaded to a shared cloud portal accessible to the client's full project team in real time.
3. Logistics Reliability: The decision to use four separate 20-foot containers (rather than two 40-foot) was deliberate — it allowed the client to receive and stage materials at four different work zones simultaneously, accelerating site installation.
4. Buffer Stock Planning: We proactively included 3% overproduction on commonly used dimensions (OD 88.9mm), which the client ultimately utilized when an unexpected design change added 12 additional connection points mid-installation.

This project demonstrates what becomes possible when a supplier approaches procurement as a collaborative engineering exercise rather than a simple transactional sale. From material selection advisory to container-level logistics optimization, every decision was made with the end goal of reducing the client's total project risk and installed cost.
