Hot Dip Galvanized Sheet Metal 4x10 4x8 Thickness 0.5mm 1mm 1.5mm Zinc Coated Steel Sheet

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Changjian
Certification: ISO9001
Model Number: Galvanized
Minimum Order Quantity: 5Ton
Price: Discuss
Packaging Details: Standard Package
Delivery Time: About 7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Ton Per Month
Detail Information
Surface: Hot-dip Galvanized Thickness: 0.2~1.5mm
Product Nam304 E: Carbon Steel Sheet Coil Weight: 5-6 Ton

Product Description

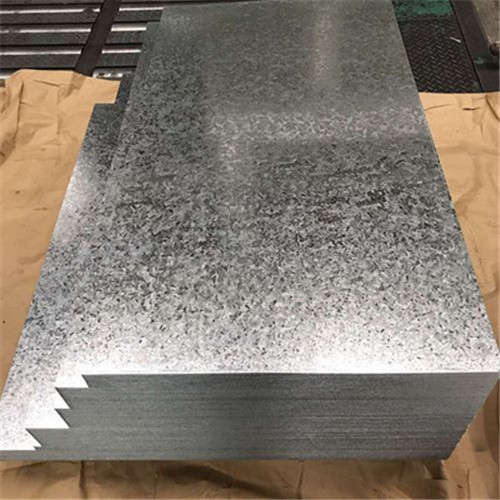

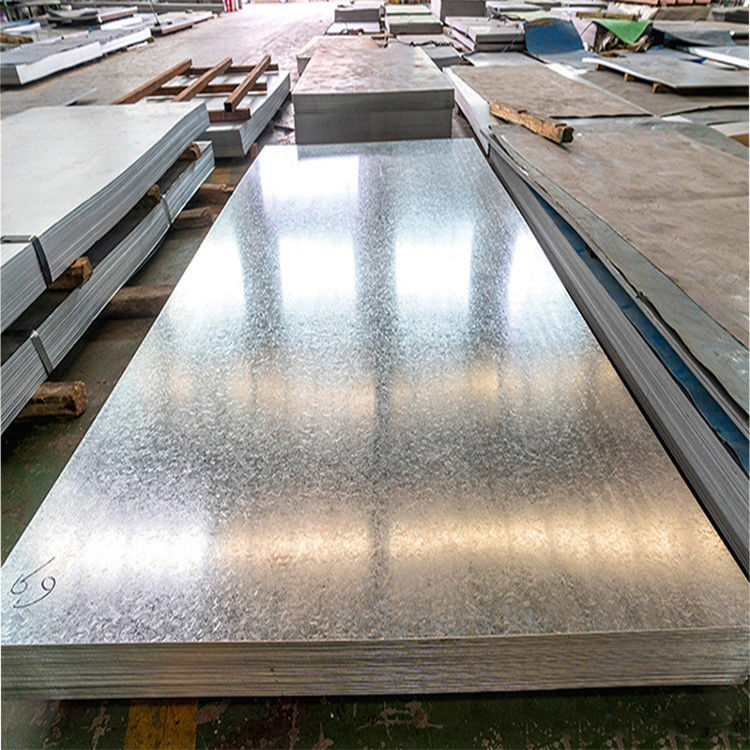

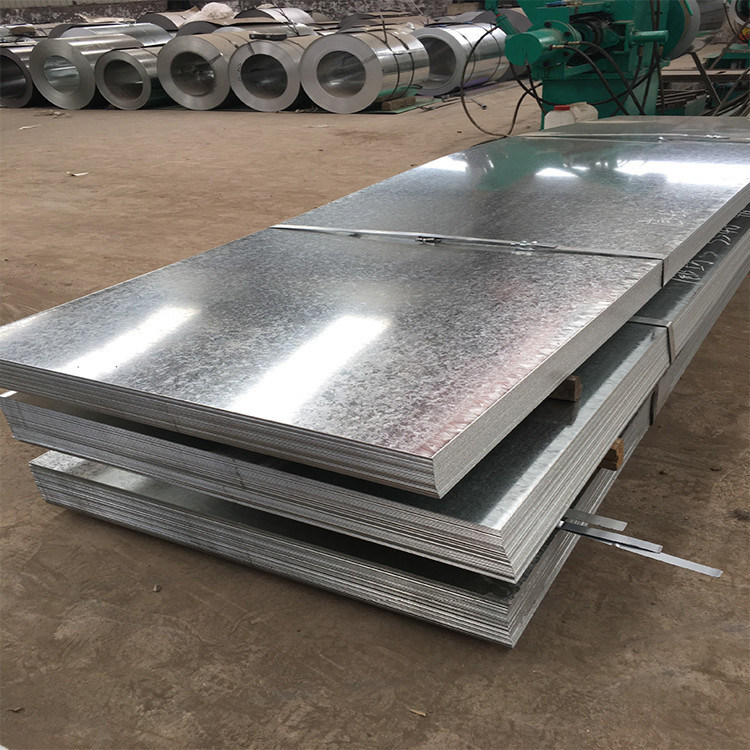

Hot Dip Galvanized Sheet Metal 4x10 4x8 Thickness 0.5mm 1mm 1.5mm Zinc Coated Steel Sheet

GALVANIZED STEEL

Galvanized Steel Sheet is defined as a carbon steel sheet coated with zinc on both sides. Galvanized Steel Coil Importer produce galvanized steel with two main processes: continuous hot dip galvanizing and electro-galvanizing.



A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.



COATING

  Type Coating mass(g/m2) Plate thickness(mm) Width(mm)
Hot Dip Galvanized steel Hot-dip galvanealed steel sheet and coil/strips 30~120 0.5~4.5 580~1250
Hot-dip galvanized steel sheet and coil/strips 60~600 0.23~6.0 580~1250
Hot-dip zinc-aluminum-magnesium-silicon alloy coated steel sheet and coil/strips 60~275 0.27~9.0 580~1250
Hot-dip aluminum coated steel sheet and coil/strips 40~160 0.3~2.5 580~1250
Electrogalvanized steel Electrolytic zinc coated steel sheet and coil/strip 10~40 0.4~2.3 580~1250
Electrolytic zinc-nickkel coated steel sheet and coil/strip 10~40 0.4~2.3 580~1250



GRADE

DX51D+Z

DX52D+Z

DX53D+Z

S280GD+Z

S350GD+Z

S550GD+Z

DX51D+AZ

DX52D+AZ

DX53D+AZ

S280GD+AZ

S350GD+AZ

S550GD+AZ

DX51D+AZM

DX52D+AZM

DX53D+AZM

S280GD+AZM

S350GD+AZM

S550GD+AZM

SGHC

SGH400

SGCC

SGCH

SGCD

SGC40
